Thermal and Pressure Hazard Screening Platform

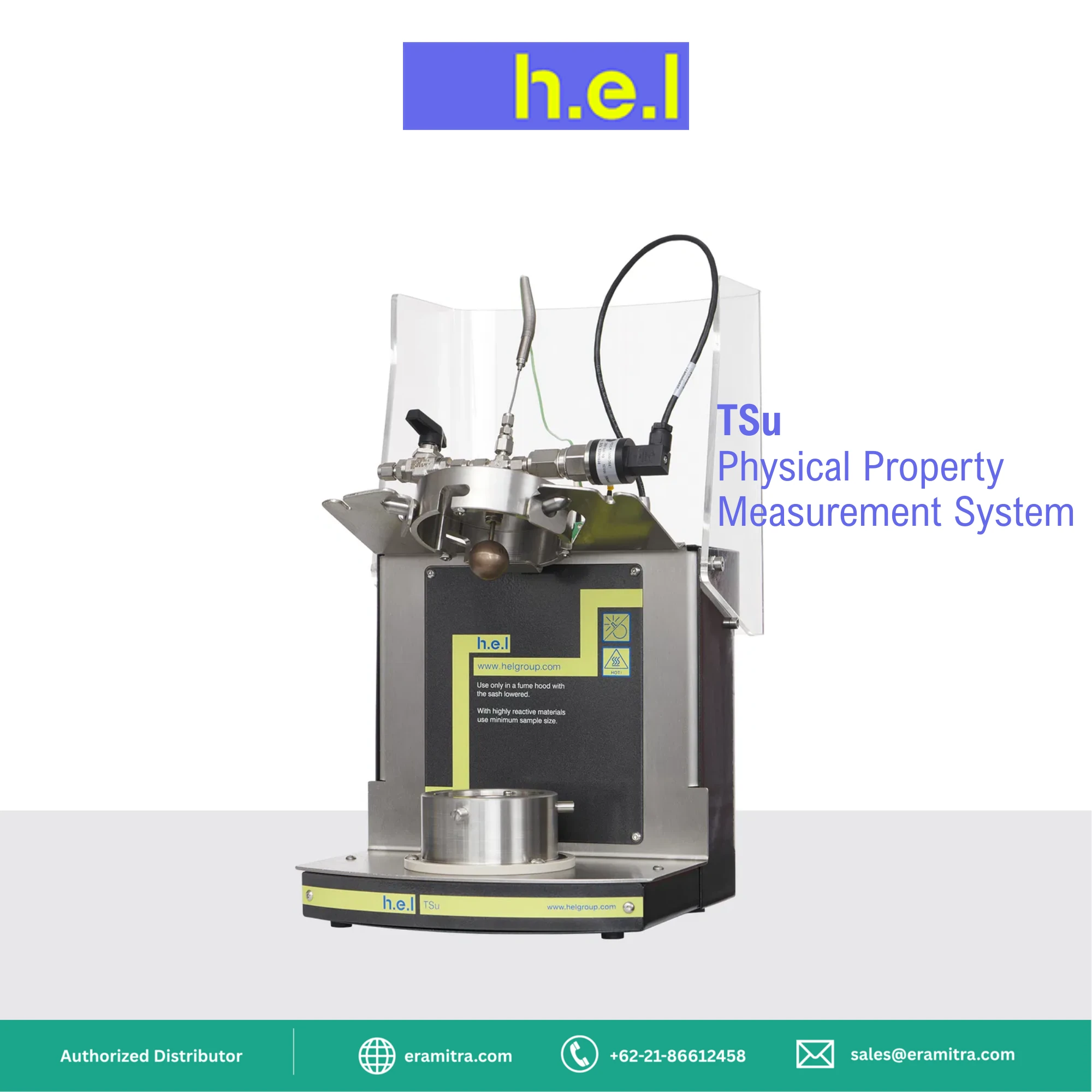

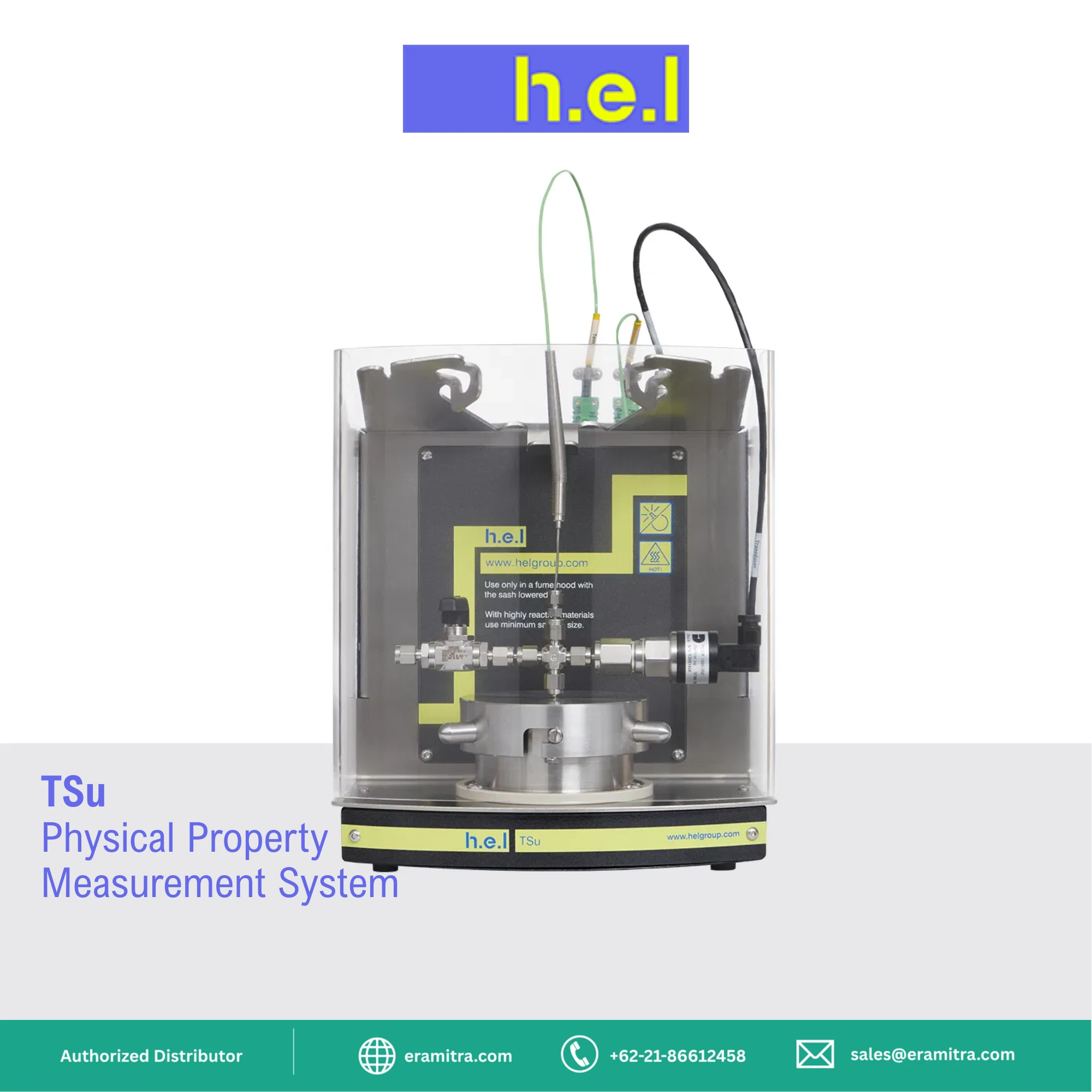

The fast screening of thermal and pressure hazards can be performed with the Thermal Screening Unit (TSu). It typically uses samples of 0.5 to 5g to generate both temperature and pressure data, and hence can be considered a better alternative to classical DSC/DTA methods.

Applications

The TSu typically finds application in:

• Thermal reaction screening of reaction hazards in process scale-up
• thermal stability studies on the reaction waste stream

This is due to its ability to characterize sample pressure changes in addition to thermal behavior, and its capability in supporting relatively large sample measurements.

For effective reaction hazard screening, two critical pieces of data are needed:

• the onset temperature (Td) of the reaction- where the exotherm is detected
• the pressure generated by the resultant runaway
