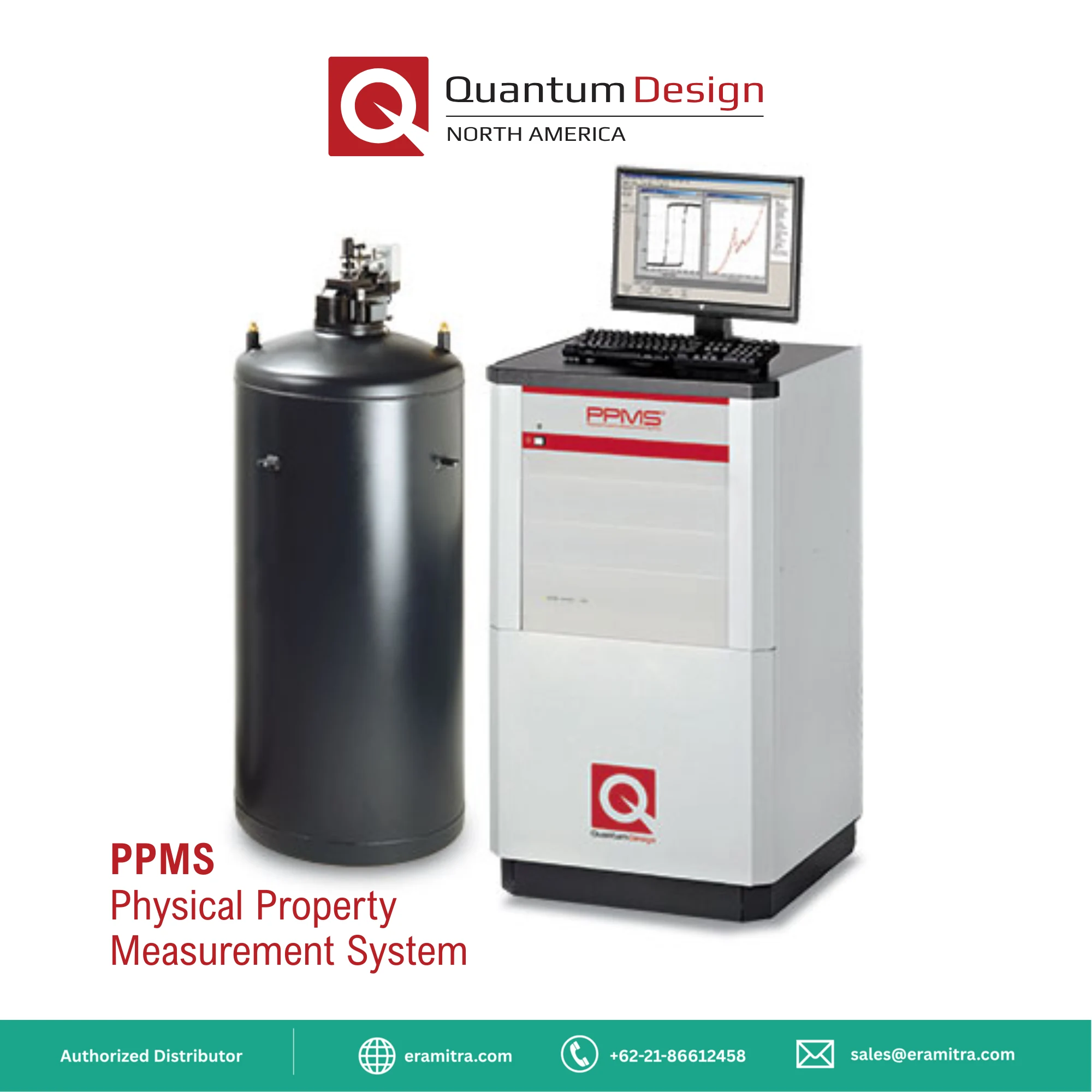

Physical Property Measurement System

The Quantum Design PPMS represents a unique concept in laboratory equipment: an open architecture, variable temperature-field system, designed to perform a variety of automated measurements. Available measurement options include all required hardware and electronics to immediately begin collecting publication-quality data, while the system is also easily adapted to custom user experiments. Sample environment controls include fields up to ±16 T and a temperature range of 1.9 - 400 K. The expandable design enables combining many features in one instrument to make the PPMS the most versatile system of its kind.

Features

• Compatible with more than 20 Quantum Design Measurement Options that seamlessly integrate with the MultiVu software environment
• Versatile sample mounts couple easily to the 12 electrical leads built into the cryostat insert for consistently reliable electrical acces
• Software controls for the temperature and magnetic field readily enable the automation of complex data acquisition procedures
• The included Model 6000, a sophisticated microprocessor-controlled device, eliminates the need to use or purchase external bridges, current sources, or voltage sources for basic system operation
• Sample chamber has 2.6 cm diameter to accommodate custom probes
• Interface with external 3rd party instruments, whether controlling these from within MultiVu or directing the PPMS from external software, such as NI LabVIEW
