This is a particle size measurement system (particle size 0.6 nm - 10 μm*) that uses the `dynamic light scattering method` (DLS method).
Various functions are included to further improve quality control.
It measures in high speed (approx. 1 minute) and it is also lightweight and compact which is essential for use in laboratories, and this new optical system is able to measure multiple samples in sequential order with a wide concentration range from dilute to concentrated.

In addition, it is a new product not immersed in the liquid (non-immersion type), so contamination is not an issue and up to 5 samples can be measured without stopping, when used without the autosampler.

*Minimum value with histogram analysis : 0.2 nm

Features

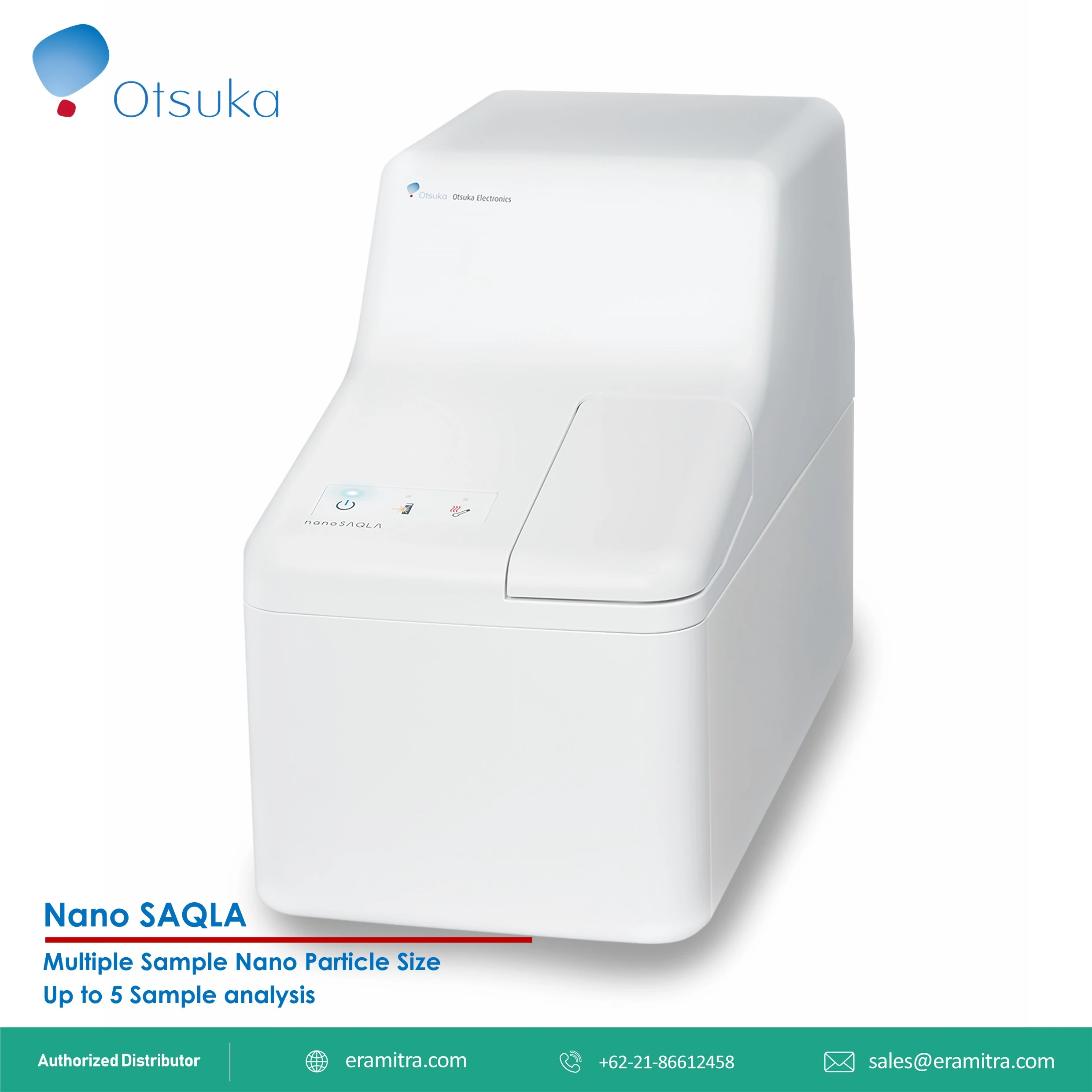

Features of nanoSAQLA

• Simple and quick one-time setup of up to 5 samples each under different conditions.
• Measures both dilute and highly concentrated samples
• Measures in approximately 1 min +
• Includes temperature gradient function
• Contamination-free continuous measurement

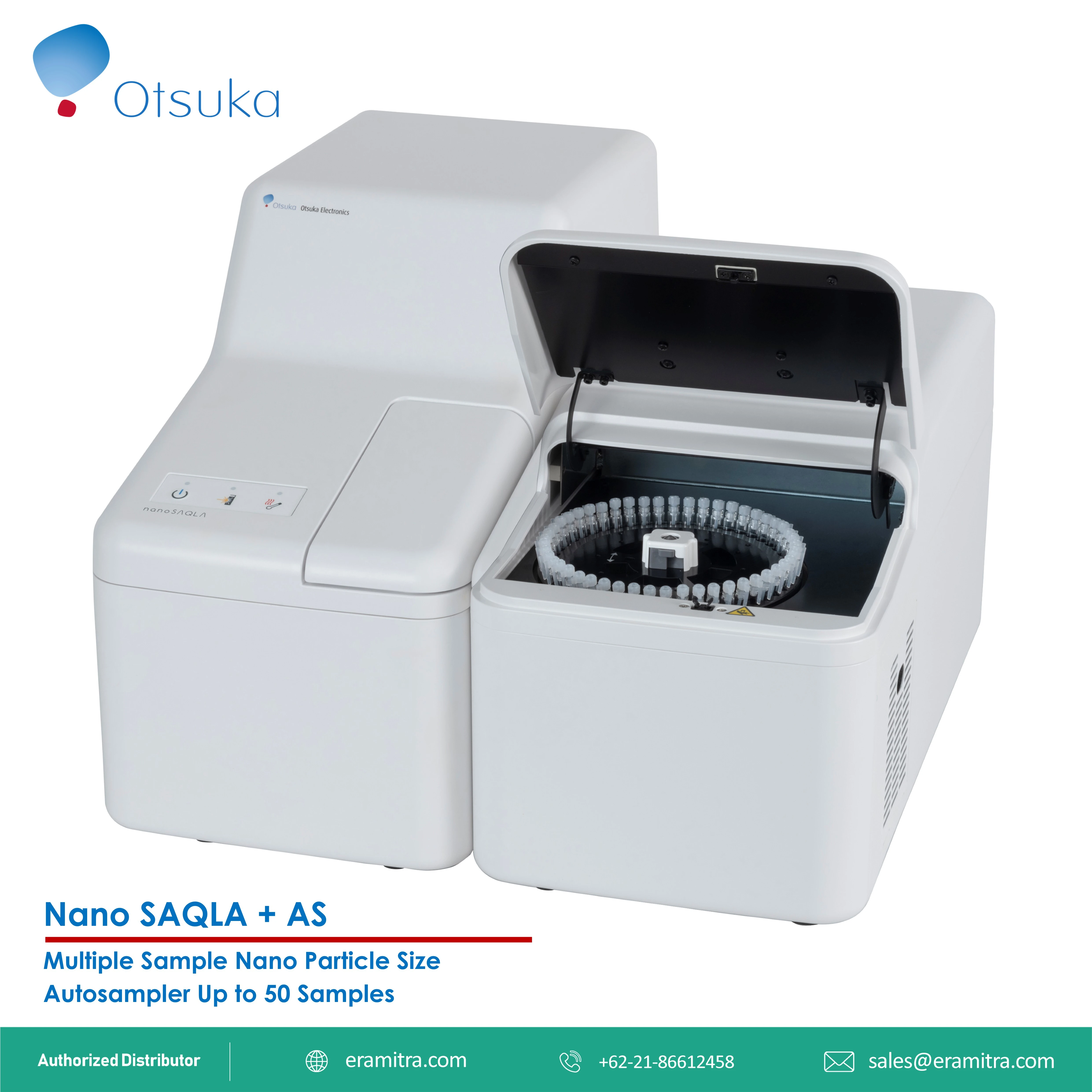

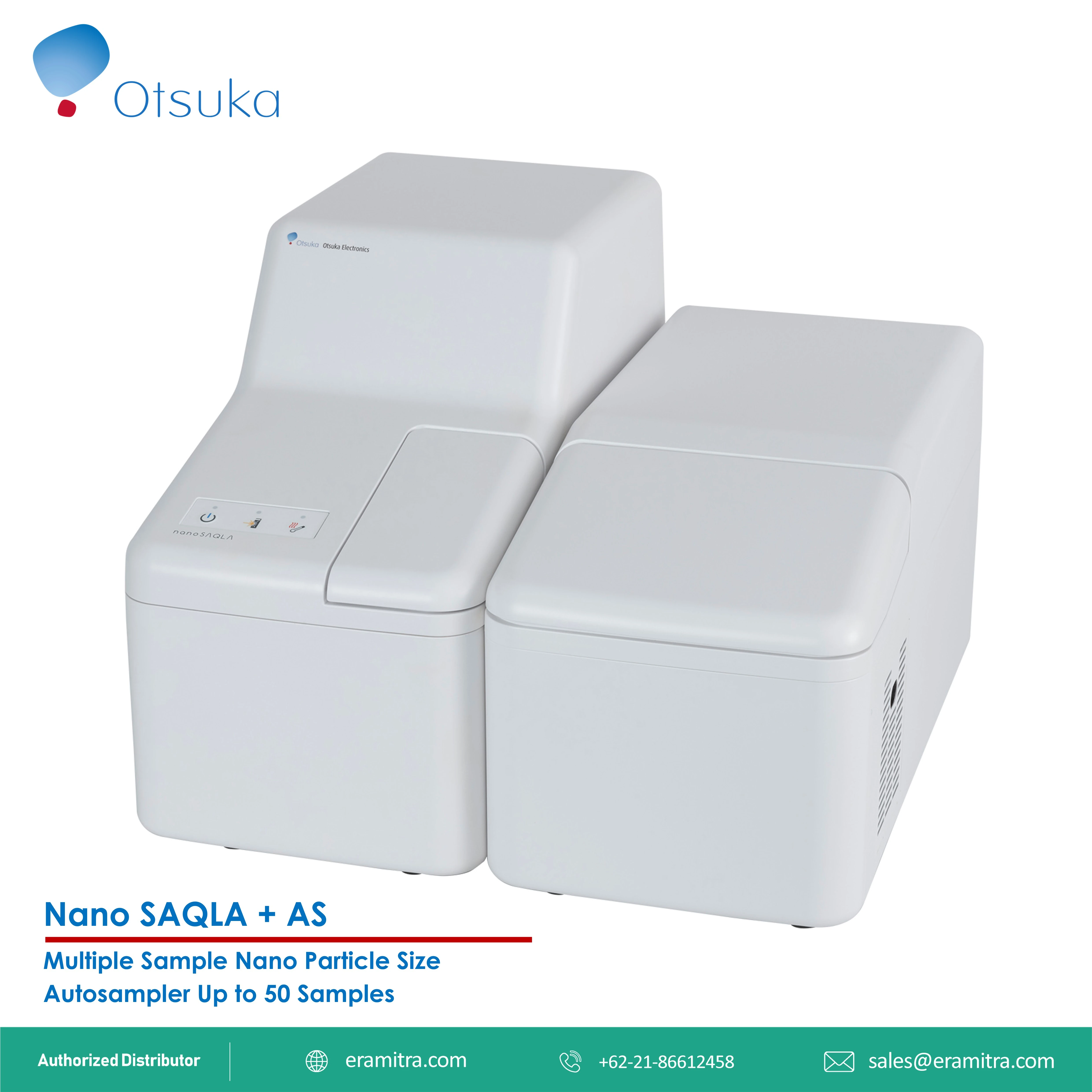

Feature of AS50

• Up to 50 samples in a row
• Add samples as measure
• Set samples in place easily
• Replace up to 50 samples at once
• For organic solvents (Glass disposable cell)
• Sample vol. 0.4 ml ~

Measurement range(theoretical value)

• Particle size range 0.6 nm-10 μm*
• Applicable concentration range 0.00001-40 ％
• Temperature range 0-90℃

  *Minimum value with histogram analysis : 0.2 nm
