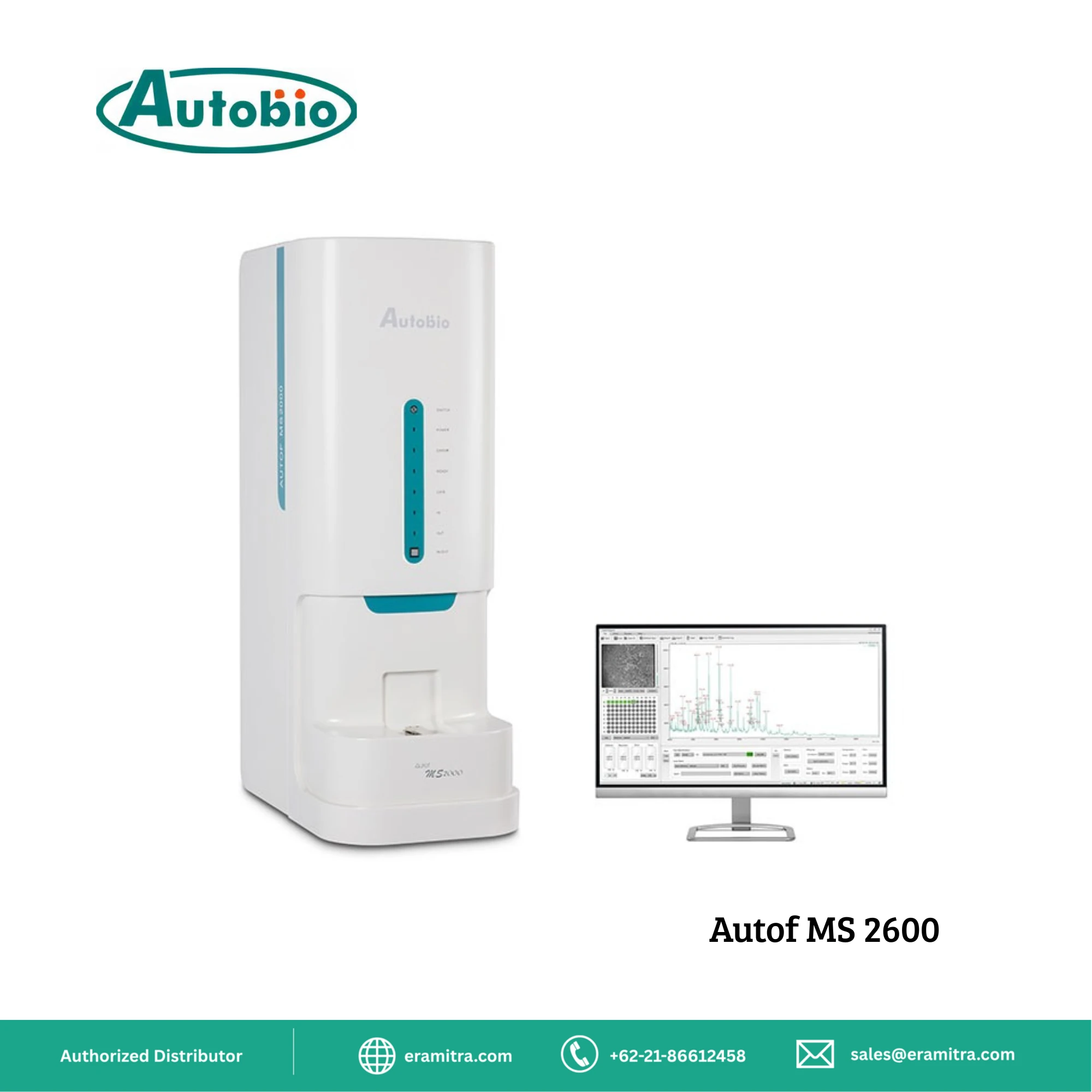

The Autof MS2600 is an advanced automated microbial identification system based on MALDI-TOF MS technology. Designed for clinical and research laboratories, it enables rapid, high-throughput, and reliable identification of a wide range of microorganisms.

Features:

    High Performance & Speed:

        Throughput: Up to 960 samples per hour – significantly faster than previous models.

        Laser Source: 355 nm solid-state laser with 7 billion laser shots lifetime.

        Vacuum System: High-performance oil-free system (1.0×10⁻⁷ mbar).

        Filter: 0.01 μm precision filter, capturing 99.99% of pathogenic microorganisms for enhanced biosafety.

    Advanced Optical & System Design:

        Thermal Balance System: Improves stability, repeatability, and instrument lifespan.

        Ion Time Delay Module: Enhances ion transport, sensitivity, and resolution.

        High-Voltage Self-Diagnostic System: Ensures safe and stable operation with real-time monitoring.

        Ion Screening Module (Optional): Adjustable voltage (0–500V) to improve peak detection and identification speed.

    Broad Application Scope:

        Identification of bacteria, fungi, mycobacteria, anaerobes, and microaerophiles.

        Respiratory pathogen panel (COVID-19, S. pneumoniae, M. pneumoniae, H. influenzae, etc.).

        Detection of antibiotic-resistant bacteria (e.g., β-lactamase producers).

        Genetic screening (deafness, thalassemia), methylation studies, and tumor marker analysis.

        Research applications for carbohydrates, lipids, and bacterial studies.

    User-Friendly & Integrable:

        Autof Acquirer Software: Provides rapid identification results in <0.1 seconds.

        Customizable database.

        Compatible with Autobio Microbiology Information System for seamless data sharing, analysis, and automated reporting.

        Supports both positive ion and negative ion detection modes.

    Physical Specifications:

        Dimensions: 450 mm × 705 mm × 1250 mm

        Weight: 110 kg
