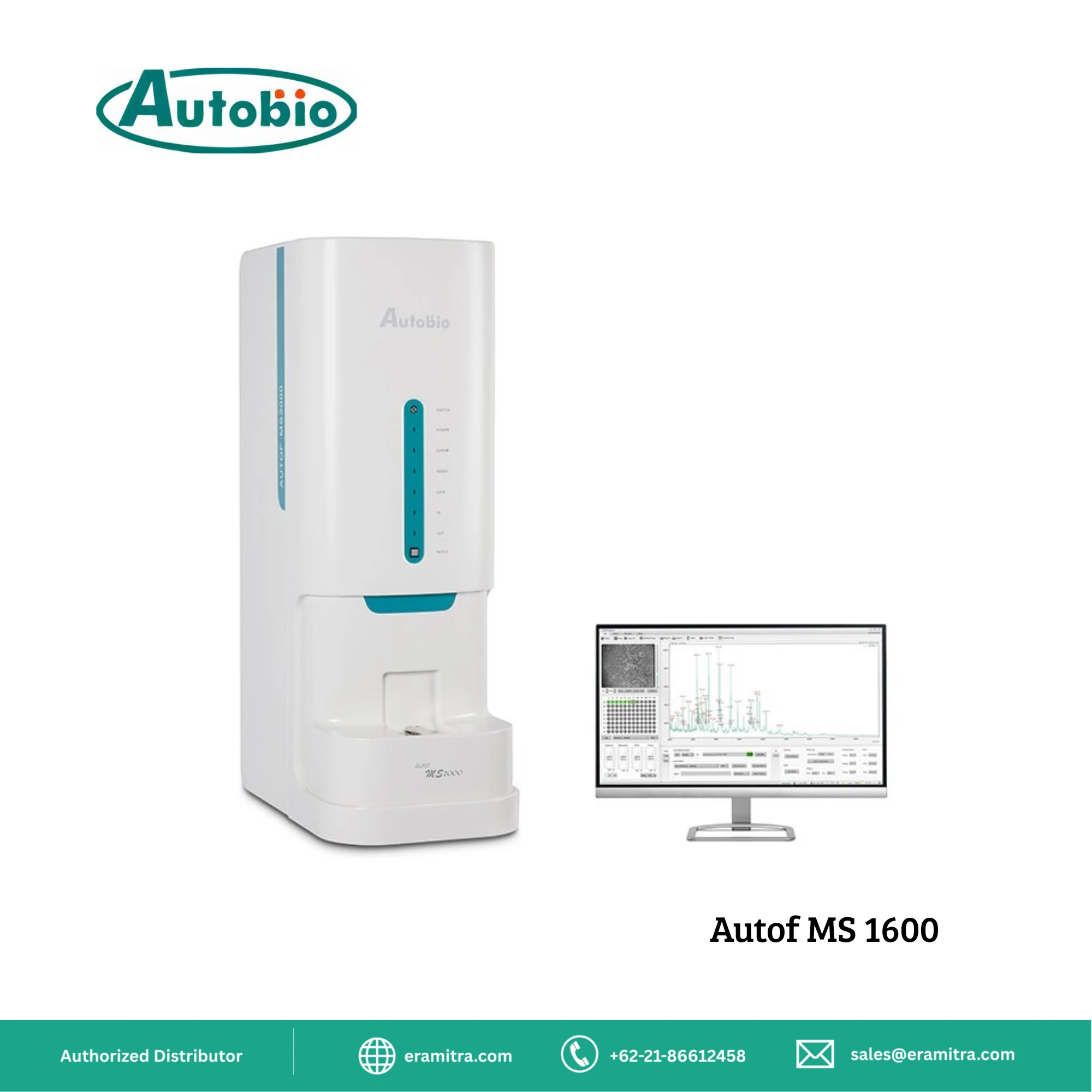

The Autofl MS1600 is an automated microbial identification system utilizing MALDI-TOF MS (Matrix Assisted Laser Desorption/Ionization Time-of-Flight Mass Spectrometry) technology for the rapid, accurate, and cost-effective identification of pathogens.

Features:

1. High Performance:

   • Analysis speed: up to 300 samples per hour

   • Mass range: 1 – 500 kDa

   • Mass accuracy: < 60 ppm

   • Resolution: > 3600 PWV-M

   • Equipped with a laser source capable of 400 million laser shots

2. Unique Optical and Detection System:

   • Detects both positive and negative ions

   • Optional ion screening module (0–500V) to enhance identification speed

   • High vacuum system (1.2x10⁻⁷ mbar) with a turbomolecular pump

3. Broad Applications:

   • Identification of bacteria, microaerophiles, anaerobes, mycobacteria, and fungi

   • Respiratory pathogen detection (including COVID-19, S. pneumoniae, M. pneumoniae, etc.)

   • Genetic screening, methylation studies, and tumor marker detection

   • Antibiotic susceptibility testing (e.g., for β-lactamase-producing bacteria)

4. Supporting Features:

   • Customizable database

   • Auto Aquaver system for rapid identification (<0.1 seconds)

   • Compatible with nucleic acid mass spectrometry for PCR and probe-based detection

5. Design and Physical Specifications:

   • Dimensions: 450mm × 705mm × 1280mm

   • Weight: 101 kg

   • Includes target slides, holders, and various pretreatment reagents for different sample types.
